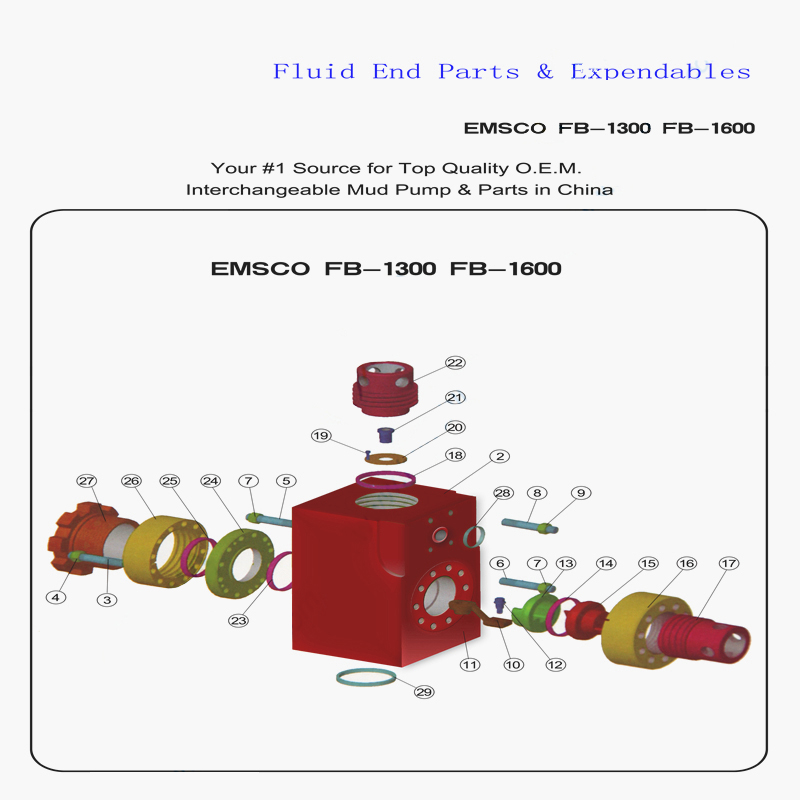

| ItemNo. | OEM PARTNo. | ORIGINAL DESCRIPTION | DESCRIPTION & Remark |
| – | 302PZL029B | FLUID CYLINER ASSEMBLY-INCLUDES REFERENCE NUMER 1 THRU 9 | FLUID END MODULE ..5000PSI , STUDDED (INCL. ITEM 2-9) |
| 2 | 302PZL029 | CYLINDER-FLUID, 5000 PSI-WIDE BODY | FLUID END MODULE 5000PSI , ONLY,WIDE BODY |
| 3 | 201PZL110 | STUD,CYLINDER TO FRAME(LONG) | STUD,CYLINDER TO LINER CLAMP & FRAME(LONG) |
| 4 | 205PZL110 | STUD,CYLINDER TO FRAME(SHORT) | STUD,CYLINDER TO FRAME(SHORT) |
| 5 | 50B36 | NUT,CYLINDER TO FRAME STUD | NUT,CYLINDER TO FRAME STUD |
| 5A | 50B36 | NUT, LINER CLAMP | NUT, LINER CLAMP |
| 6 | 204PZL110 | STUD, VALVE COVER RING TO CYLINDER | STUD, VALVE COVER RING TO CYLINDER |
| 7 | 50B34 | NUT,VALVE COVER RING TO CYLIDER STUD | NUT,VALVE COVER RING TO CYLIDER STUD |
| 8 | 202PZL110 | STUD,CYLINDER TO DISCHARGE MANIFOLD | STUD,CYLINDER TO DISCHARGE MANIFOLD |
| 9 | 50B34 | NUT,CYLINDER TO DISCHARGE MANIFOLD STUD | NUT,CYLINDER TO DISCHARGE MANIFOLD |
| 10 | 200PZL387 | RING-VALVE COVER | THREADED RING,VALVE COVER |
| 11 | 204PZL715 | Gasket, Valve Cover | Gasket, Valve Cover |
| 12 | 2007674 | BUSHING,SUCTION VALVE GUIDE | BUSHING VALVE GUIDE |
| 13 | 200PZL147 | COVER-VALVE | VALVE COVER |
| 14 | 315PZL316 | GASKET,LINER | LINER GASKET |
| 15 | 301PZL587 | LOCK-COVER | LOCK-COVER, VALVE |
| 16 | 2011701 | PLATE-RETAINER | RETAINER PLATE,VALVE |
| 17 | 200PZL483A | VALVE GUIDE ASSEMBLY, INCL. REFERENCE NUMBER 12,16,18,19 | VALVE GUIDE ASSEMBLY, INCL. REFERENCE NUMBER 12,16,18,19 |
| 18 | 95W2 | LOCKWASHER | LOCKWASHER |
| 19 | 655EG08N | SCREW, | SCREW, |
| VALVE GUIDE TO RETAINER PLATE | VALVE GUIDE TO RETAINER PLATE |
| 20 | 25AL35 | GASKET, DISCHARGE MANIFOLD TO CYLINDER | GASKET, DISCHARGE MANIFOLD TO CYLINDER |
| 21 | 25BE41 | GASKET, SUCTION MANIFOLD TO CYLINDER | GASKET, SUCTION MANIFOLD TO CYLINDER |
| 22 | 200PZL405 | CLAMP,LINER | LINER CLAMP |
